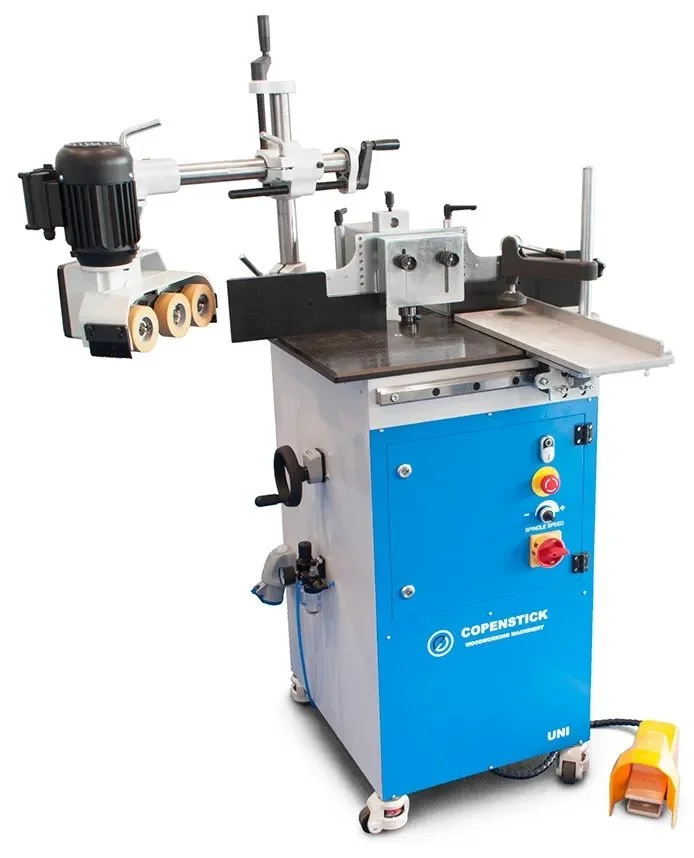

UNI‑V Universal Profiling & Notching Centre
One versatile spindle—endless profiling, notching and dovetailing options.
Why Choose the UNI‑V?
Built for workshops that refuse to run multiple single‑task machines:
HSK Quick‑Change Speed — Swap pre‑set tools in seconds via an HSK32 high‑speed spindle, cutting downtime between profiles.
Tilt, Plunge, Repeat — Motor inclines 0–90° and lifts vertically by 100 mm on demand, so you can notch, dovetail or mould without re‑jigging.
Fence Turret Memory — Twin four‑position turret stops let you park the fence at repeatable offsets for rapid batch work.
Power‑Feed Ready — Bolt‑on power feed (optional) controls feed rate and boosts operator safety.
Ideal for: Bespoke window & door profiles • decorative notches • stair parts • dovetail drawer sides • 5 piece doors
How it works
Set Tooling — Insert HSK32 pre‑set cutter, tighten and verify digital height read‑out (0.8 mm per rev).
Position Fence — Rotate front or rear turret stop to the required offset; lock with thumbscrew.
Load & Clamp — Slide workpiece against fence and secure with manual adjustable clamp.
Foot‑Pedal Action — Pneumatic cylinder lifts the spindle (or plunges if in horizontal mode) to meet the material.
Return & Next — Spindle retracts; operator indexes fence or swaps cutter for the next profile.
Key Specifications
| Parameter | Value |
|---|---|
| Power supply | 240 V / 16 A / 50 Hz single phase |
| Pneumatic supply | 6 bar |
| Spindle speed | 12,000 – 18,000 rpm |
| Spindle motor | 2.2 kW HSK32 quick‑change |
| Extraction ports | 80 mm + 120 mm |
| Tool holding | ER25 collets |
| Height adjustment (Z) | 125 mm |
| Spindle inclination | 0° – 90° continuous |
| Work table height | 950 mm |
| Machine dimensions | 600 × 840 × 1,235 mm |
| Approx. weight | 205 kg |
Typical lead‑time from order to dispatch is 2-3 weeks
Shipping details: Timber crate Net weight 205 kg, Gross weight 283 kg, 104 x 82 x 141cm
Made in Britain, Installed Worldwide
100+ Machines | 14+ Countries | Innumerable hours saved to date
From our workshop in West Sussex, we mill and assemble every spindle and run every acceptance test before a machine leaves the door. Each unit ships with the correct voltage, CE paperwork and a plug‑and‑play starter tooling pack—so customers from Melbourne to San Francisco can uncrate and start cutting right away.
Frequently Asked Questions (FAQs)
-
Yes, an optional 120 V converter kit is available.
-
Yes; tilt the spindle to 8–12° and use a dovetail cutter.
-
Up to 60 mm cutter projection.
-
Manual feed as standard; 3‑roller power feed available as an option.
-
Metric only (0.8 mm per revolution).
Save Hours. Boost Profit.
Cut cycle times by up to 240 %, lower cost‑per‑sash, and ship more orders every shift—without expanding your floor space.
