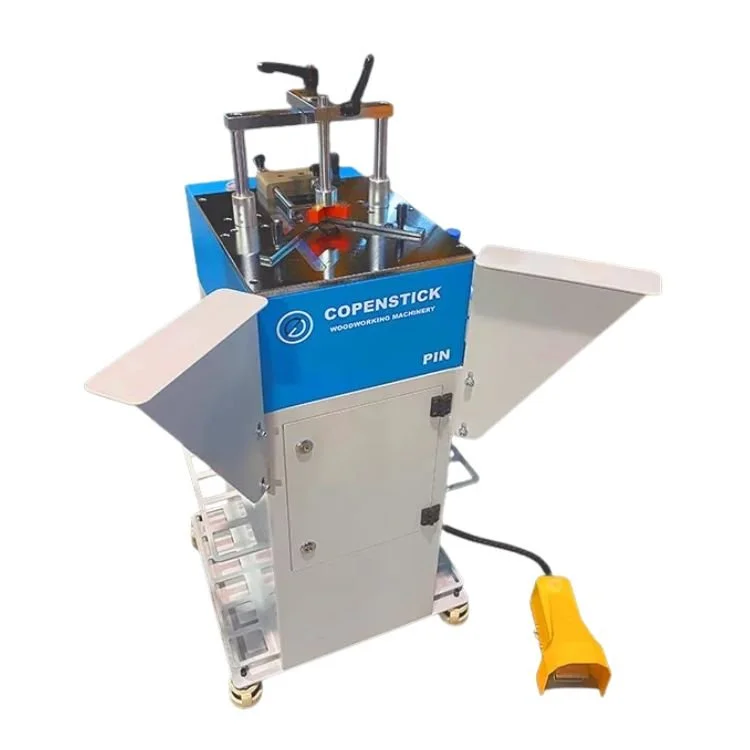

PIN Framing Underpinner

Nail mitred glazing‑bar cassettes in seconds—no visible fixings, no re‑work.

Why Choose the PIN?

  • Invisible Fixings, Perfect Faces — Foot‑pedal actuation drives special nails from the underside, leaving the exposed face pristine.

  • 12‑Position Beading Magazine — Base station stores up to a dozen perimeter bead sets so an entire cassette kit stays organised and within reach.

  • Stability for Long Profiles — Adjustable extension tables steady oversized beads and stop twist during pinning.

  • Fast, Repeatable Joint Location — Two sliding stops and a 90° fence guide each mitre to the exact nail positions you set—tighten a thumbscrew and go.

Ideal for:  Pre‑finished timber window cassettes • door light frames • decorative glazing grids

How it works

  1. Load Beads — Place each pre‑mitred perimeter bead set into one of the twelve magazine racks.

  2. Set Nail Positions — Slide the two adjustable stops to the desired spacing; lock with thumbscrews.

  3. Align & Clamp — Hold bead against the 90° fence and first stop.

  4. Foot‑Pedal Pinning — Depress pedal; underpinner drives nail(s) from underside through both mitred halves.

  5. Index & Finish — Slide to second stop, fire final nail, repeat for remaining corners.

Video Block
Double-click here to add a video by URL or embed code. Learn more

Key Specifications

Parameter Value
Pneumatic supply6 bar
Compatible nail sizes7 mm, 10 mm, 12 mm, 15 mm
Storage cabinetLockable
Table height950 mm
Extension table height adj.18 mm
Machine dimensions600 × 600 × 1,150 mm
Approx. weight55 kg
MobilityOptional castors with levelling device

Full technical sheet available for download.

Typical lead‑time from order to dispatch is 7-9 weeks

Shipping details: Timber crate Net weight 97 kg, Gross weight 148 kg, 66 x 69 x 137cm

Made in Britain, Installed Worldwide

100+ Machines | 10+ Countries | Innumerable hours saved to date

From our workshop in West Sussex, we mill and assemble every spindle and run every acceptance test before a machine leaves the door. Each unit ships with the correct voltage, CE paperwork and a plug‑and‑play starter tooling pack—so customers from Melbourne to San Francisco can uncrate and start cutting right away.

Frequently Asked Questions (FAQs)

  • Yes, an optional 120 V converter kit is available.

  • No. Pins are driven from the underside, leaving the face blemish‑free.

  • Up to twelve perimeter sets, keeping a full window cassette kit organised.

  • V-Nails are used for the fastner

  • Yes, choose the castor kit with built‑in levelling feet for mobile or fixed use.

Save Hours. Boost Profit.

Cut cycle times by up to 240 %, lower cost‑per‑sash, and ship more orders every shift—without expanding your floor space.

Made in Britain. Delivered worldwide.
