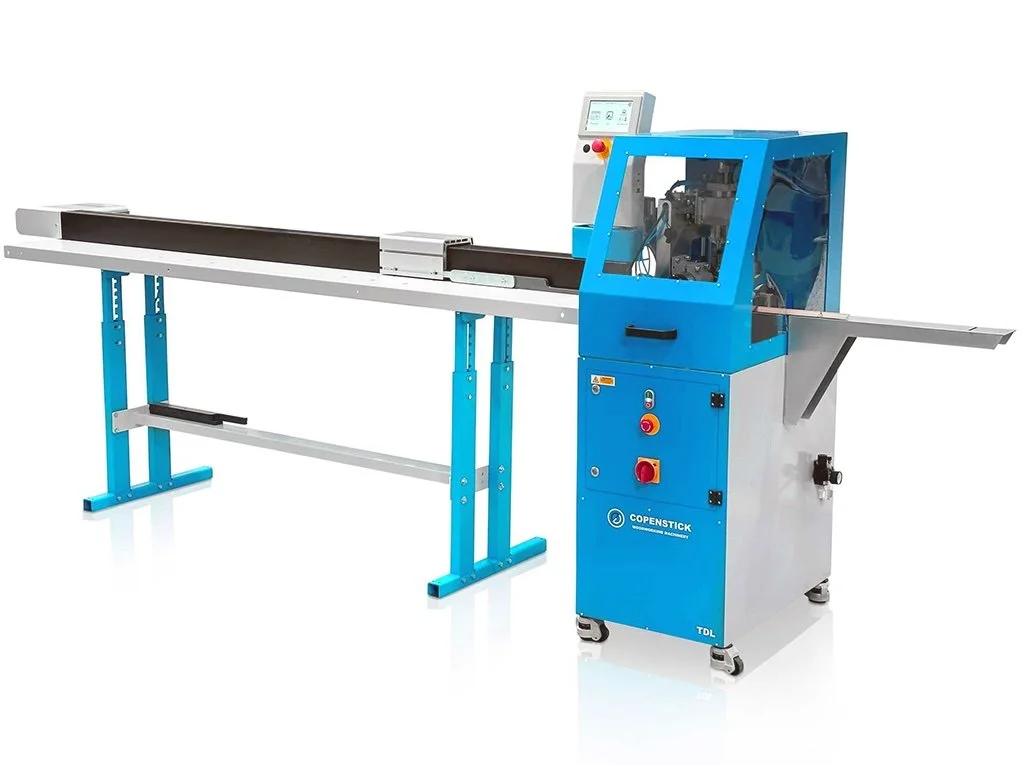

TDL Half‑Lap Jointing Machine

Rapid, tear‑free half‑laps for perfect glazing‑bar cassettes.

Why Choose the TDL?

Built for uncompromising joint strength and speed:

  • One‑Pass Half‑Lap Perfection – Three high‑speed spindles cut the V‑notches and the half‑depth cross‑cut in a single cycle, delivering crisp, interlocking joints every time.

  • No Profile Tear‑Out – Workpiece is milled on all three sides while firmly clamped, eliminating grain breakout on fully profiled bars.

  • Self‑Centred Accuracy – Adjustable self‑centring clamp aligns material automatically, so every joint sits dead‑centre without manual adjustment.

  • Foot‑Pedal Efficiency – Pneumatic clamps engage and the cycle starts with one tap, boosting throughput and operator safety.

Ideal for:  Traditional & simulated divided light (TDL/SDL) bars • decorative cabinet grids • timber window grilles

How it works

  1. Load & Align – Operator slides the bar along the flip‑stop into the self‑centring clamp.

  2. Clamp & Start – Foot‑pedal activates two pneumatic hold‑downs and begins the machining sequence.

  3. Dual 45° V‑Notches – Twin 24,000 rpm spindles plunge to cut opposing V‑notches.

  4. Half‑Depth Cross‑Cut – A third spindle traverses across the bar at exactly 50 % depth to complete the lap.

  5. Auto‑Return – Heads retract and table returns to start, ready for the next bar.

Key Specifications

Parameter Value
Power supply240 V / 16 A / 50 Hz single phase
Pneumatic supply6 bar
Spindle speed24,000 rpm (all three spindles)
Spindle motors3 × 0.8 kW
Extraction port120 mm
Tool holdingER11 collets
Workpiece width17 – 60 mm
Workpiece height10 – 56 mm
Turret stop positions5 height presets
Machine dimensions480 × 800 × 1,500 mm (excl. flip‑stop/supports)
Approx. weight150 kg

Full technical sheet available for download.

Typical lead‑time from order to dispatch is 2-3 weeks

Shipping details: Timber crate Net weight 182 kg, Gross weight 263 kg, 96 x 77 x 167cm

Made in Britain, Installed Worldwide

100+ Machines | 14+ Countries | Innumerable hours saved to date

From our workshop in West Sussex, we mill and assemble every spindle and run every acceptance test before a machine leaves the door. Each unit ships with the correct voltage, CE paperwork and a plug‑and‑play starter tooling pack—so customers from Melbourne to San Francisco can uncrate and start cutting right away.

Frequently Asked Questions (FAQs)

  • Yes, an optional 120 V converter kit is available.

  • Yes, the clamping system avoids surface scuffing.

  • Approx. 14 seconds including clamp time.

  • 120 mm port; we recommend a minimum 1,500 m³/h airflow.

  • Half‑laps only; for mitres use the SDL with angle table.

Save Hours. Boost Profit.

Cut cycle times by up to 240 %, lower cost‑per‑sash, and ship more orders every shift—without expanding your floor space.

Made in Britain. Delivered worldwide.
