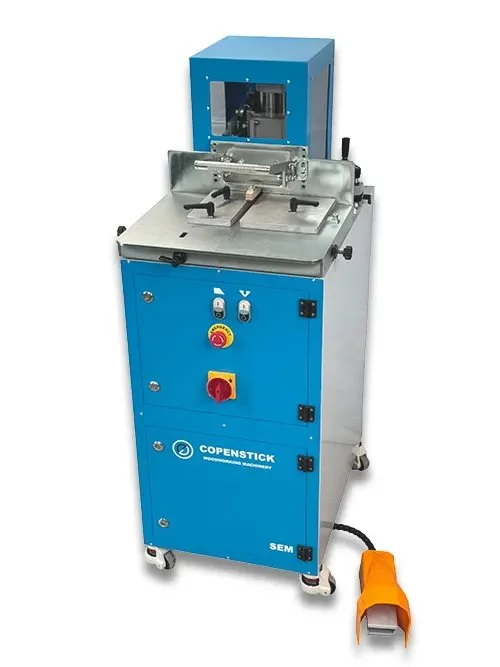

SEM Single‑End Milling Station

Tear‑free end‑scribing and dowel‑groove milling in one compact pass

Book a Demo

Why Choose the SEM - Single‑End Milling Station?

One station, multiple gains:

  • Two‑in‑One Machining – Counter‑rotating end‑cope cutters plus a third spindle that mills the dowel groove; no secondary operation needed.

  • Tear‑Free Finish Every Time – Dual 12,000 rpm spindles rotate in opposite directions, eliminating grain breakout on plant‑on bars.

  • Zero Tool‑Change Downtime – Stack multiple scribe tools on each shaft; select via digital mechanical read‑out.

  • Single‑Phase, Small Footprint – Plugs into a 240 V 20 A supply and occupies less than 1m².

Ideal for: external plant‑on glazing bars • bevel mouldings on casements, sashes and doors.

How it works

  1. Clamp & Align – Specially designed manual clamp secures profiled bar during the cycle.

  2. Dual Spindle End‑Cope – Two high‑speed cutters remove the bulk and finish the scribe in one pass.

  3. Groove Milling – A third 24,000 rpm spindle cuts the dowel groove precisely centred for secure fixing.

  4. Ready for Assembly – Tear‑free faces and pre‑cut groove mean plant‑on bars can be fixed immediately.

Key Specifications

Parameter Value
Power supply240 V / 16 A / 50 Hz single phase
End‑cope spindle speed12,000 rpm
End‑mill spindle speed (groove)24,000 rpm
Motors2 × 1.5 kW (end‑cope) + 0.8 kW (groove)
Extraction port100 mm
Tool holdingER25 & ER11 collets
Table travel60 – 140 mm (trimmed to suit profile)
Height adjustment90 mm lockable
Position indicatorDigital, 3 mm per rev; accuracy 0.01 mm
Glazing bar width18 – 38 mm
Workpiece limit @ 90 °38 × 30 mm
Max tooling Ø60 mm
Machine footprint480 × 760 mm; height 1,280 – 1,320 mm adjustable
Approx. weight170 kg

Typical lead‑time from order to dispatch is 2-3 weeks

Shipping details: Timber crate Net weight 191 kg, Gross weight 254 kg, 86 x 71 x 153cm

Download Technical Sheet

Made in Britain, Installed Worldwide

100+ Machines | 14+ Countries | Innumerable hours saved to date

From our workshop in West Sussex, we mill and assemble every spindle and run every acceptance test before a machine leaves the door. Each unit ships with the correct voltage, CE paperwork and a plug‑and‑play starter tooling pack—so customers from Melbourne to San Francisco can uncrate and start cutting right away.

Frequently Asked Questions (FAQs)

  • Yes, an optional 120 V converter kit is available.

  • Standard set‑up cuts a 6 mm groove; custom diameters available.

  • Table travel is linear; for angled cuts we recommend the SDL model.

  • 100 mm port, minimum 1,200 m³/h airflow recommended.

Save Hours. Boost Profit.

Cut cycle times by up to 240 %, lower cost‑per‑sash, and ship more orders every shift—without expanding your floor space.

Made in Britain. Delivered worldwide.
