Specialist Joinery Machines, Ready to Ship Anywhere
Made in Britain. Installed in 14+ countries and counting.
Our Complete Line-Up
SDL – End‑Scribing Machine for Simulated Divided Lights
Purpose‑built for accurate, tear‑free end‑scribing of profiled glazing‑bar stock. Twin high‑speed counter-rotating spindles cut in opposing directions, while a 0–45° adjustable table lets you cope intersecting bars with zero break-out.
Ideal for: simulated‑divided‑light (SDL) bars • sash & casement glazing bars • muntin bars - timber joinery shops
UNI‑V Universal Profiling & Notching Centre
HSK‑32 quick‑change spindle tilts 0–90° and lifts 100 mm, switching from spindle‑moulding to notching or dovetailing in seconds—true multi‑function versatility.
Ideal for: custom profiling • dovetails & notches • R&D or short‑run joinery lines

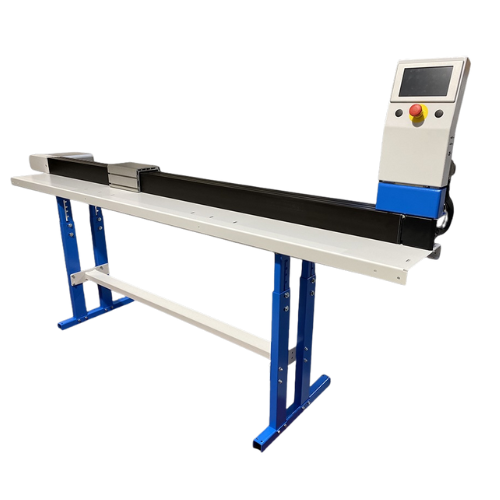

STP NC Positioner
Touch‑screen or network‑driven stop/pusher that integrates with TDL and UNI machines. Boosts repeatability and removes manual measuring on lengths up to 6.7 m.
Ideal for: automated length positioning • high‑volume half‑lap cycles • data‑driven production
SEM Single‑End Milling Station
Connect external plant‑on bars to bevelled mouldings in a single pass. Two counter‑rotating spindles form the scribe; a third milling head cuts a groove for dowel fixing, all held by a quick‑clamp for fast changeovers.
Ideal for: plant‑on glazing bars • window sashes • door stiles needing dowelled joints
UNI‑H Cross‑Milling & Boring Centre
Adds Y‑axis plunge and cross‑feed to the UNI platform, enabling horizontal boring and cross‑milling—perfect when fitting external glazing bars to bevel mouldings.
Ideal for: cross‑milling bevelled sashes • horizontal dowel/lock bores • flexible prototyping
TDL Half‑Lap Jointing Machine
Cuts perfect 90° half‑lap joints for SDL/TDL grids or decorative panels. Three spindles mill all faces while the workpiece stays clamped, guaranteeing strength and a clean finish.
Ideal for: half‑lap glazing bar cassettes • window grilles • cabinet frame intersections - muntin bars
PIN Framing Underpinner
Foot‑pedal nailing station speeds up assembly of mitred glazing‑bar cassettes. Twelve‑slot beading magazine and adjustable extensions keep long beads under control.
Ideal for: cassette frame assembly • pre‑finished timber windows & doors • batch nailing tasks
SPK Lofting Stapler
Pneumatic station, foot-pedal operated, that fixes glazing cassettes to their parent frame with an angled staple. Guarantees consistent positioning and clean release after spray finishing.
Ideal for: glazing cassette spray finishing lines • timber window production workshops • batch painting of pre-assembled cassettes and frames
HNG Hook Stapler
Purpose-designed pneumatic stapler that drives temporary 16g wide crown staples to hang casements for spray finishing. Eliminates pilot holes and screw hooks, cutting re-work and prep time significantly.
Ideal for: spray finishing lines for timber casements and sash windows • paint shops handling pre-glazed or pre-assembled frames • joinery workshops finishing batches of casements
BAR Astragal Stapler
Lightweight, pneumatic tool for securing half-lap joints and fixing plant-on bars to perimeter mouldings. Drives clean, consistent fixings with available stainless steel staples for lasting weather resistance.
Ideal for: glazing cassette half-lap assembly • plant-on bar fixing to mouldings • timber window and door manufacturing
Need Something Bespoke?
We also design custom cutter profiles and tooling packages tailored to your window or door system.
Frequently Asked Questions (FAQs)
-
Yes, we crate and ship worldwide with CE paperwork.
-
All machines run on 240 V single‑phase; specific amperage is detailed on each product page.
-
We often have stock ready to ship immediately, contact us to see what is available. Custom orders can take up to a month to be ready to ship.
Made in Britain, Installed Worldwide
100+ Machines | 14+ Countries | Innumerable hours saved to date
From our workshop in West Sussex, we mill and assemble every spindle and run every acceptance test before a machine leaves the door. Each unit ships with the correct voltage, CE paperwork and a plug‑and‑play starter tooling pack—so customers from Melbourne to San Francisco can uncrate and start cutting right away.
Save Hours. Boost Profit.
Cut cycle times by up to 240 %, lower cost‑per‑sash, and ship more orders every shift—without expanding your floor space.
Made in Britain. Delivered worldwide.
