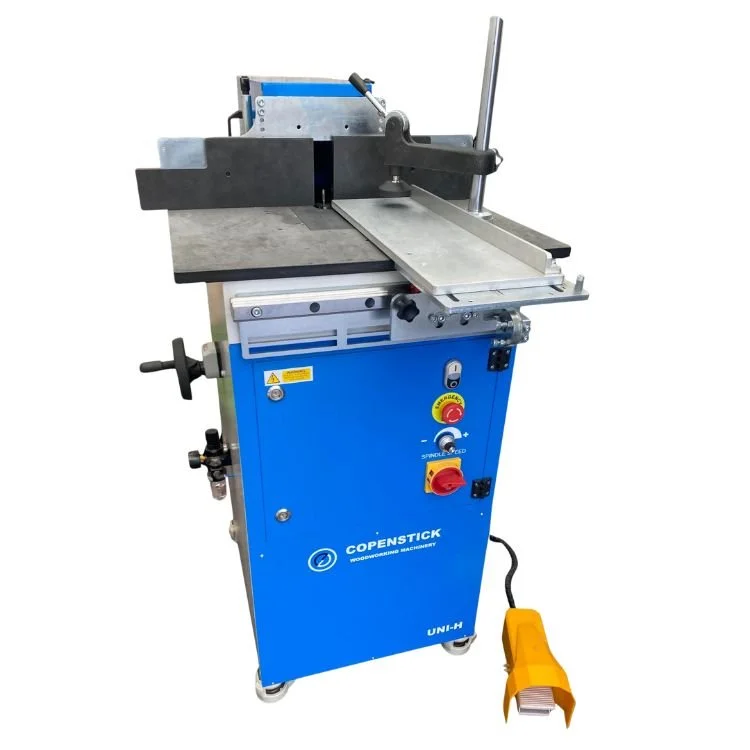

UNI‑H Cross‑Milling & Boring Centre
Switch from plunge‑boring to cross‑milling in seconds—no re‑rig, no compromise.
Why Choose the UNI‑H?
When a standard spindle moulder just won’t cover every operation you need:
True 3‑Axis Versatility — In addition to 0–90° spindle tilt and 125 mm Z‑lift, UNI‑H adds a 50 mm Y‑axis plunge driven by a foot‑controlled pneumatic cylinder, enabling horizontal boring and plunge‑cutting.
Cross‑Milling on Demand — Tilt the spindle vertical, engage the foot pedal and sweep the cutter 50 mm across the bed to create locking rebates for external glazing bars.
Quick‑Change HSK32 Spindle — Swap pre‑set tooling in moments; variable‑frequency drive runs 12,000–18,000 rpm for flawless finishes.
Single‑Phase, Compact Footprint — 600 × 840 mm base and 240 V/16 A supply slot straight into small workshops.
Ideal for: Horizontal dowel bores • cross‑milled glazing‑bar rebates • plunge mortices • bespoke joinery prototypes
How it works
Install Tooling — Load HSK32 cutter; tighten and verify digital height indicator (0.8 mm per rev).
Select Mode — Set spindle vertical for cross‑milling or horizontal for plunge‑boring.
Position Fence & Clamp — Align workpiece against main fence; lock manual clamp for secure hold.
Foot‑Pedal Action — Pneumatic cylinder plunges or sweeps spindle 50 mm to execute the cut.
Reset & Repeat — Spindle retracts automatically; operator indexes or loads next piece.
Key Specifications
| Parameter | Value |
|---|---|
| Power supply | 240 V / 16 A / 50 Hz single phase |
| Pneumatic supply | 6 bar |
| Spindle speed | 12,000 – 18,000 rpm |
| Spindle motor | 2.2 kW HSK32 quick‑change |
| Z‑axis lift | 125 mm |
| Y‑axis plunge | 50 mm |
| Spindle inclination | 0° – 90° continuous |
| Extraction ports | 80 mm + 120 mm |
| Table height | 950 mm |
| Machine dimensions | 600 × 840 × 1,235 mm |
| Approx. weight | 205 kg |
Typical lead‑time from order to dispatch is 2-3 weeks
Shipping details: Timber crate Net weight 205 kg, Gross weight 283 kg, 104 x 82 x 141cm
Made in Britain, Installed Worldwide
100+ Machines | 14+ Countries | Innumerable hours saved to date
From our workshop in West Sussex, we mill and assemble every spindle and run every acceptance test before a machine leaves the door. Each unit ships with the correct voltage, CE paperwork and a plug‑and‑play starter tooling pack—so customers from Melbourne to San Francisco can uncrate and start cutting right away.
Frequently Asked Questions (FAQs)
-
Yes, an optional 120 V converter kit is available.
-
Yes. The 50 mm Y plunge combined with 24,000 rpm spindle gives clean, accurate dowel bores.
-
Up to 50 mm sweep across the bed.
-
Manual feed as standard; 3‑roller power feed available as an option.
-
Metric only (0.8 mm per rev).
Save Hours. Boost Profit.
Cut cycle times by up to 240 %, lower cost‑per‑sash, and ship more orders every shift—without expanding your floor space.
Made in Britain. Delivered worldwide.
